Introduction

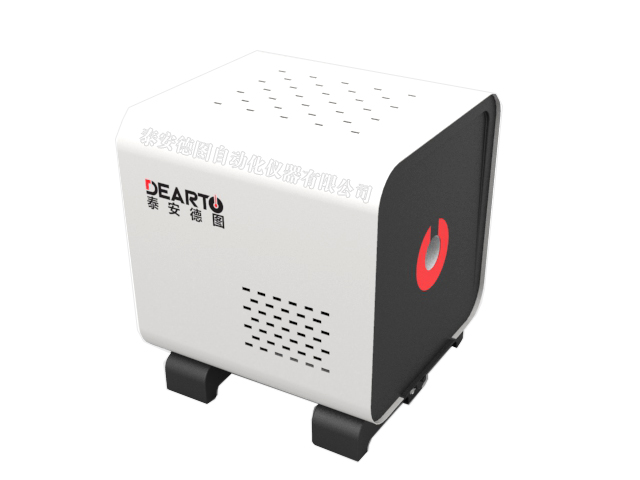

DTL-300G Short Thermocouple Calibration/Verification Furnace is a temperature field constant temperature equipment suitable for calibration of various types of standard thermocouples, working precious metal thermocouples, and base metal thermocouples. DTL-300G thermocouple verification furnace has the advantages of good thermal insulation and anti-leakage. The technical indicators of its temperature field fully comply with the relevant national calibration regulations and standard technical requirements. At the same time, our company also provides customers with non-standard customized services.
Technical Parameters
◇ Furnace size: 40mm×300mm
◇ Temperature range: 300 ℃ ～ 1200 ℃
◇ Temperature field index: The temperature field center deviates from the geometric center ≤10mm, within 40mm ≤1.0 ℃. The temperature gradient within ± 20mm in the center of the temperature field≤0.4 ℃ / 10mm.
◇ According to the regulations: "JJF1184-2007 Thermocouple Calibration Furnace Temperature Field Test Technical Specifications". "JJG668-1997 Working (Pt-Rh 10-Pt, Pt-Rh 13-Pt) short thermocouple calibration regulations".
◇ Scope of application: S / R short thermocouple, short type inexpensive metal thermocouple calibration / verification.
Remarks: The furnace size and temperature range of DTL-300G short thermocouple calibration furnace can be customized.
Note: furnace inner size, temperature range can be customized non-standard
