Introduction

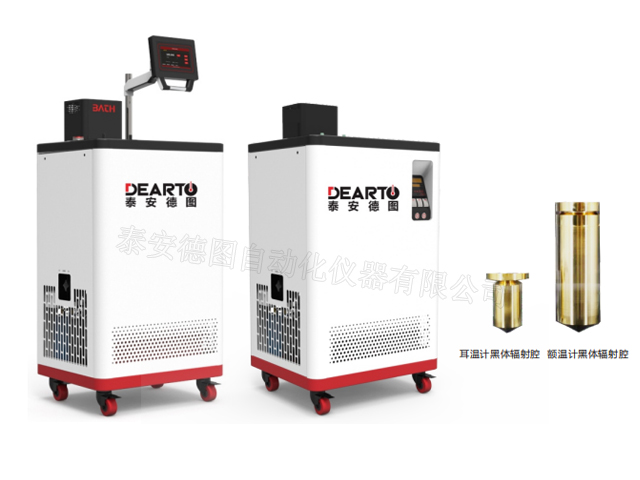

DTME-50G infrared ear forehead thermometers calibrator is mainly used to calibrate non-contact infrared thermometers,Such as human infrared ear thermometers and infrared forehead thermometers.
DTME-50G ear thermometers calibrator is a high-precision self-control digital display temperature calibration device, which has the characteristics of good temperature stability, uniform temperature field, high temperature control accuracy, low noise, good reliability and long life.
DTME-50G infrared thermometers calibrator adopts PID temperature regulation to realize automatic temperature control, compact structure, convenient operation and intuitive reading.
Function
1. Spherical black body radiation source with a high emissivity of 0.999.
2. The opening is 50mm, which satisfies the calibration of most D: S thermometers.
3. There is dew condensation device to effectively prevent dew condensation, and it can work for a long time.
4. Good uniformity, good repeatability and good temperature control stability.
Technical Parameters
| Model | DTME-50G infrared ear thermometers calibrator | DTSE-50G infrared thermometers calibrator |
| Operating temperature | 0℃～50℃(32-42℃） | 0℃～100℃ |
| Cavity | Spherical | Spherical |
| Resolution | 0.001℃ | 0.001℃ |
Temperature stability | ±0.02℃/10min | ±0.02℃/10min |
| Temperature uniformity | ≤0.02℃ | ≤0.02℃ |
| Transition time | ＜10min | ＜10min |
| Cavity diameter | Φ10mm/Φ50mm | Φ130mm |
| Emissivity | 0.999 | 0.999 |
| Working medium | Antifreeze | Antifreeze |
| Ambient temperature | 15-30℃ | 15-30℃ |
| Power supply | 220V | 220V |
| Power | 2KW | 2KW |
| Previous:Base Metal Thermocouple Wire Automatic Calibration System | next:DTHTH High Temp. and High Humi. Smart Calibration Chamber |
